12V 80AH Car Starter Lithium Battery
• MOQ: 10
• Delivery: 25 Days
• Customizable / OEM / ODM: Yes
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT
Category Page：72V batteries Forklift Batteries
PRODUCT CATEGORIES
12V 80Ah Car Starter Lithium Battery Overview
The FSEBATTERY 12V 80Ah car starter lithium battery is a LiFePO4 reference configuration for B2B buyers who need to review starting performance, installation space, terminal layout, and electrical interfaces before ordering. Provide the vehicle starting requirement, charging-system details, installation constraints, and destination market so that the selected build can be confirmed before quotation and production.
Reference Performance and Operating Data
The following values describe the current reference configuration. Confirm the current datasheet, test method, and selected BMS configuration for a specific vehicle or project.
| Cell chemistry | LiFePO4 |
|---|---|
| Nominal voltage | 12.8V |
| Nominal capacity | 80Ah |
| Nominal energy | 1024Wh |
| Cold cranking rating | 900A CCA |
| Maximum continuous discharge | 200A |
| Peak discharge | 1200A for 5 seconds |
| Dimensions | 278 × 175 × 190 mm |
| Weight | 8 kg |
| Discharge temperature | -20°C to 60°C |
OEM Integration and Interface Options

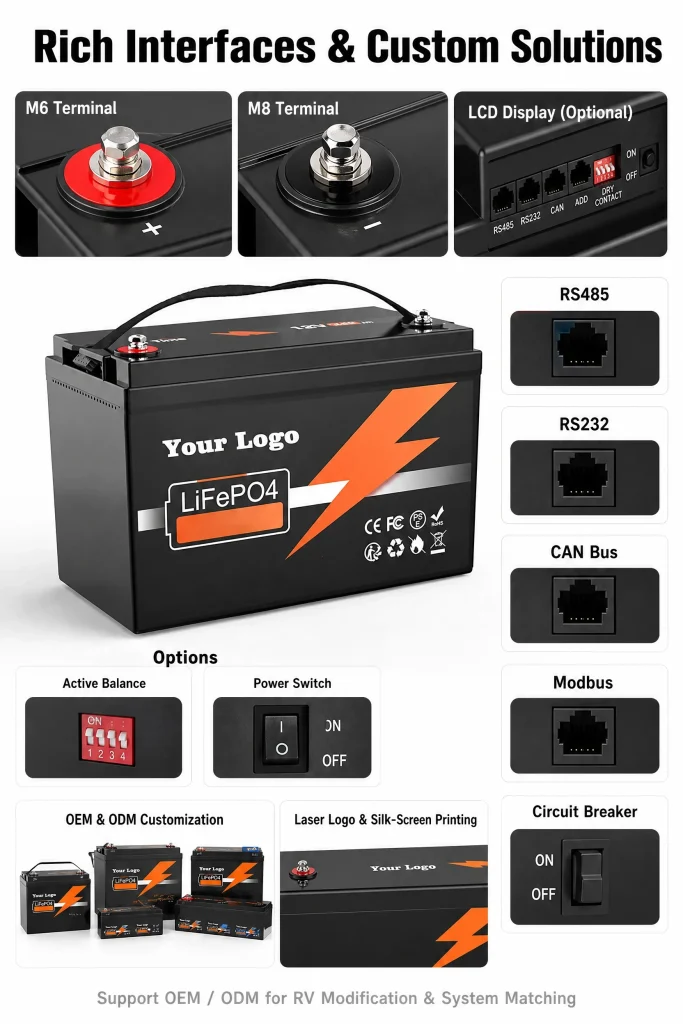

For OEM and project requirements, available configuration options include M6 or M8 terminals and BMS communication interfaces such as RS485, CAN bus, and Modbus. Confirm the required terminal arrangement, communication protocol, controller compatibility, cable layout, cold-cranking target, and installation space before production. The interface image below is a configuration reference; the approved datasheet and quotation define the final equipment.
Request a 12V 80Ah Starter Battery Configuration Review
For pricing or technical confirmation, send the vehicle application, required cold-cranking current, terminal layout, BMS communication protocol, planned order quantity, and destination market. FSEBATTERY can confirm the appropriate configuration and provide the current documentation for the selected build.
| Specifications | ||||
| Lithium Cell Type | LiFePO4 | |||
| Nominal Voltage | 12.8V | |||
| Nominal Capacity | 80Ah | |||
| Nominal Energy | 1024Wh | |||
| Max Charge Voltage | 14.6V | |||
| Discharge Cut-off Voltage | 10.5V | |||
| Max Continues Charge Current | 200A | |||
| Max Continues Discharge Current | 200A | |||
| Dimensions(L x W x H) | 279 x 175 x 188 mm | |||
| Weight | 10 kg | |||
| Cycle Life | >6000 cycles (DOD 80% 0.2C) | |||
| Internal Resistance | ≤10 mΩ | |||
| Self-discharge | ≤2% per month | |||
| IP Rating | IP65 | |||
| Charge Temperature | 0°C ~ 50°C | |||
| Discharge Temperature | (-20°C ~ 65°C) | |||
| Storage Temperature | (-10℃ ~ 50℃) | |||
| Self-heating | Optional | |||
| LCD Display | Optional | |||
| Optional Upgrades | Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / CAN bus / RJ45 / Modbus / Power Switch / Circuit Breaker / Active Balance / etc | |||
| BMS | JBD BMS/JK BMS | |||
| Terminal | M6 / M8 | |||
| Battery Case | ABS | |||
| Warranty | 10 Years | |||
| Silk-screen / Label / Laser Logo | Yes | |||
| User Manual | Yes | |||
| OEM / ODM | Yes | |||
| Certifications | CE / MSDS / UN38.3/UL | |||
Frequently Asked Questions (FAQs)
What vehicles can use a 12V 80Ah car starter lithium battery?
The battery is suitable for passenger vehicles, SUVs, light trucks, and performance vehicles that require high cranking power and stable voltage supply.
Is the 12V 80Ah car starter lithium battery compatible with start-stop vehicles?
Yes. The LiFePO4 chemistry supports frequent cycling, making it suitable for vehicles equipped with automatic start-stop systems.
How long does a lithium car starter battery last?
With more than 4000 cycles, the battery can last significantly longer than conventional lead-acid batteries under typical vehicle usage conditions.
Does the battery include protection electronics?
Yes. The built-in smart BMS provides protection against overcharge, over-discharge, overcurrent, short circuits, and temperature fluctuations.
Can distributors order customized automotive lithium batteries?
Yes. Full OEM and ODM services are available including branding, casing design, firmware configuration, and packaging customization.
What is the cold cranking performance of this battery?
The battery delivers 900A CCA, ensuring strong ignition power even under demanding starting conditions.
Does the battery support monitoring functions?
Optional Bluetooth monitoring and mobile APP integration allow users to monitor battery voltage, capacity, and health status.
What temperature range can the battery operate in?
The battery supports discharge temperatures from -20°C to 65°C, making it suitable for diverse automotive environments.
